CT92468A/05
2 in stock

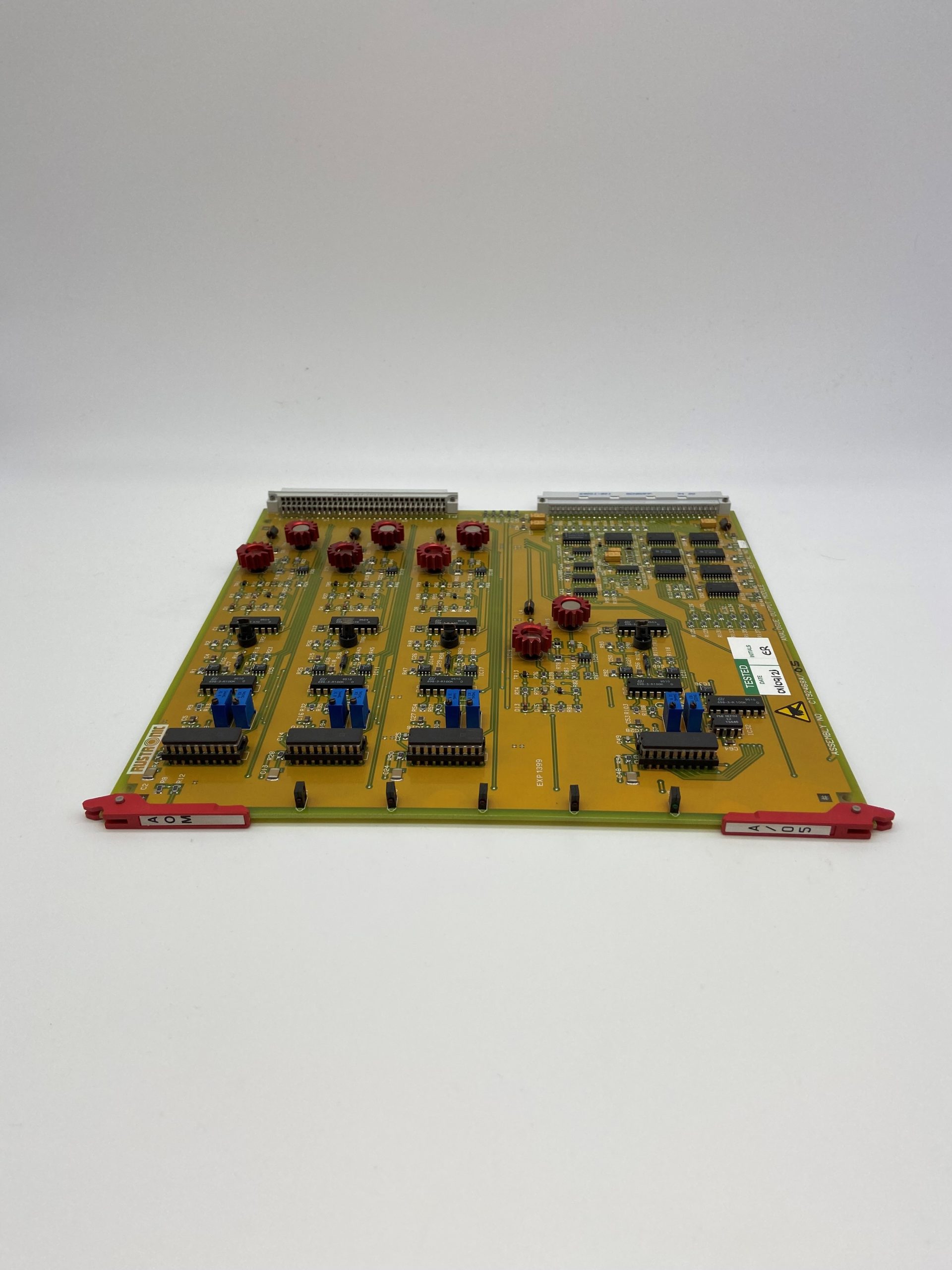

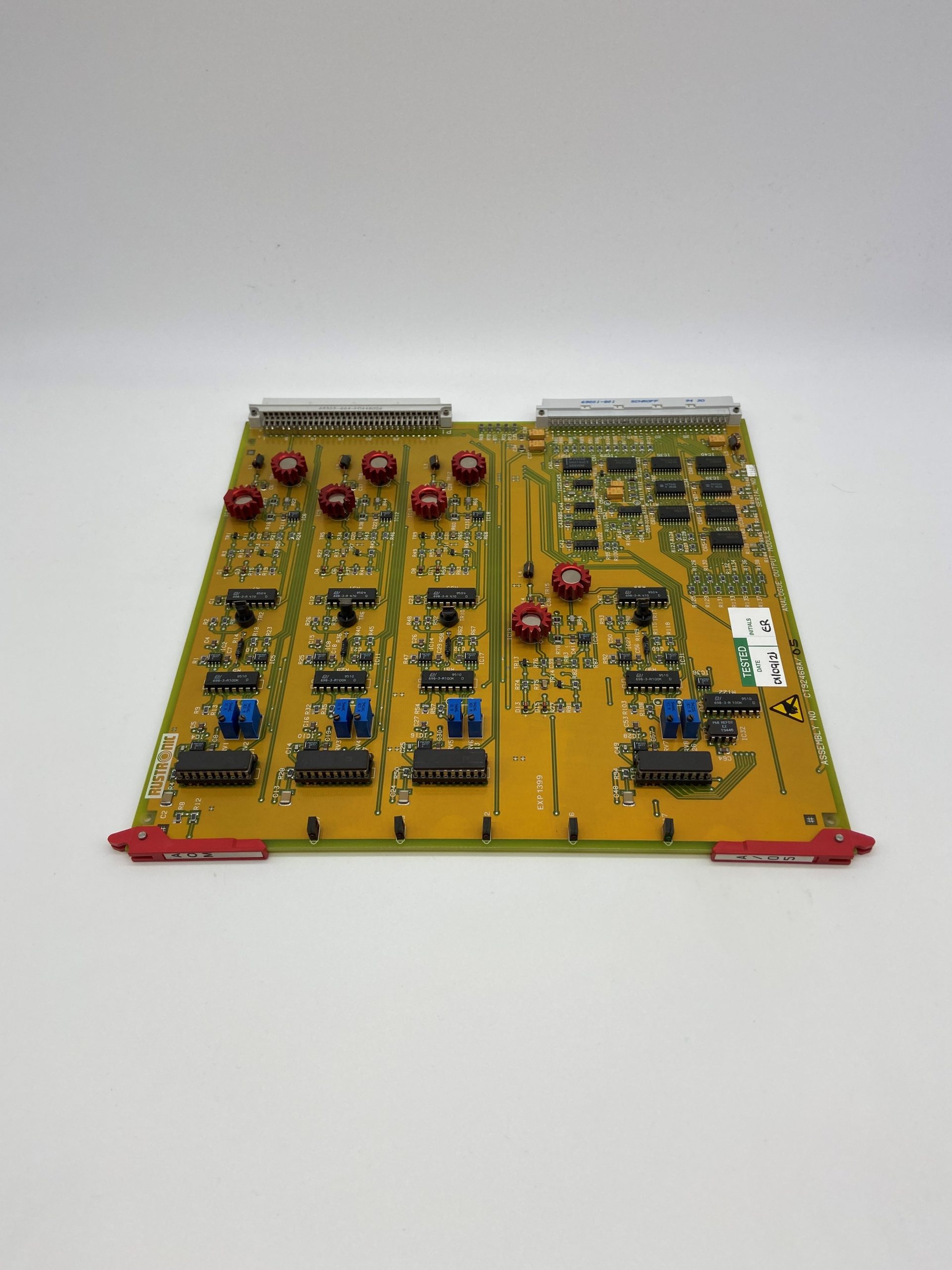

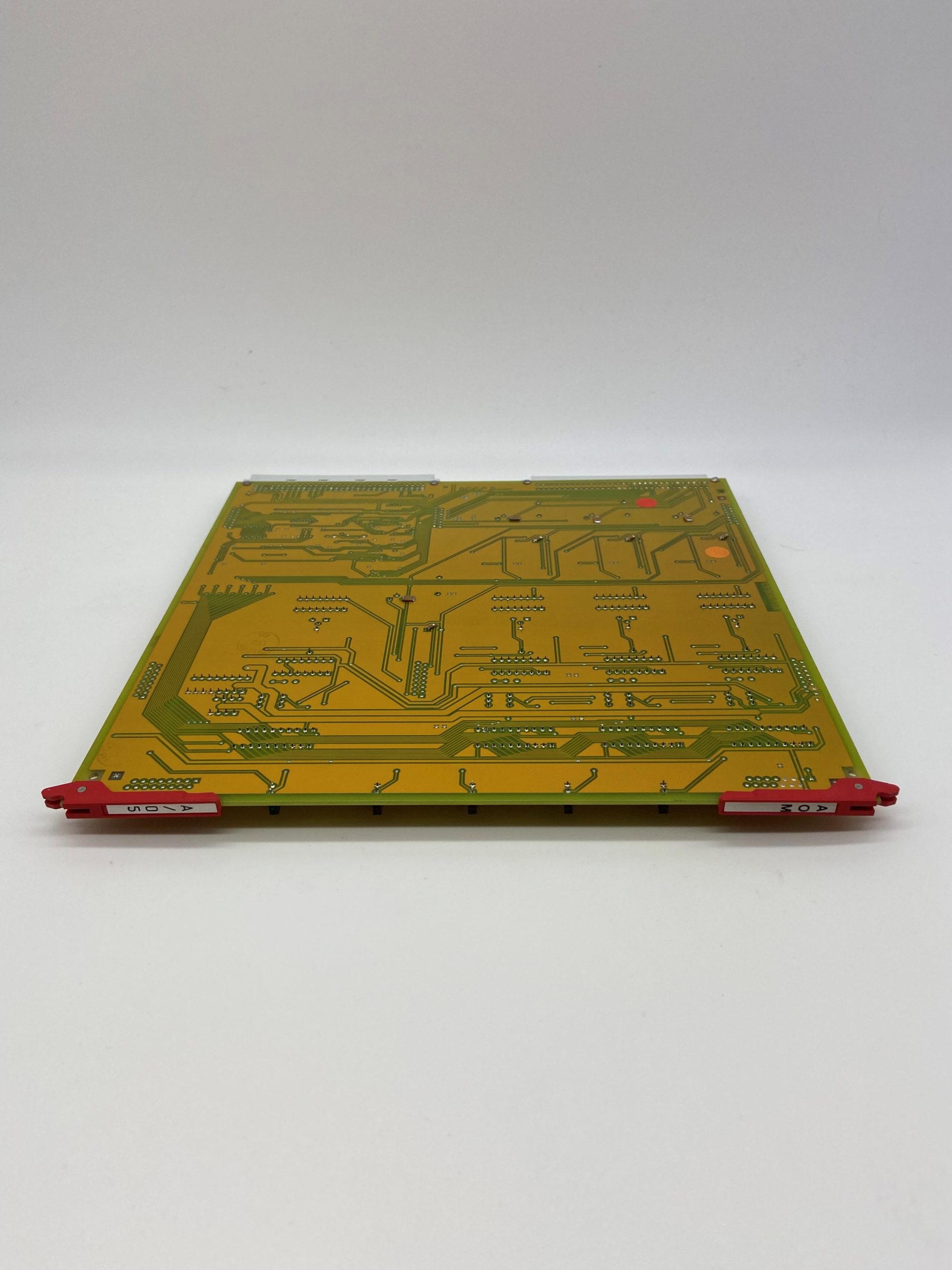

Analogue Output Module (AOM)
Description
Condition: Overhauled & Tested
Location: UK
Manufacturer: Siemens
Control System: Rustronic MkII
Warranty: 12 Months
Equivalent part Numbers: CT92468A/02-05
Suitable for the engine range: SGT100, SGT200, SGT300, SGT400, LM1600, LM2500, LM5000, LM6000
The Analogue Output Module provides the control system with four analogue current loop outputs (e.g. to actuators, meters).
- 4 channels.
- Engineering range scaling in software.
- Test injection/monitoring for loop test purposes.
- Card edge lamps for loop power and board healthy indication.
- Inbuilt diagnostic and card watchdog facilities.
- Outputs disabled by watchdog trip or by RP2 command.
- All bus and plant connections via rear of card allowing easy installation.
- Easy connection to DIN rail mounted plant termination modules.
| Plant Outputs | 4 off | |
| Output Range | 4 to 20mA | |
| Current Loop Supply | 18 to 30 Volts DC | |
| Maximum Load | 600 Ohms from 18 V supply | |
| Resolution | 3.9uA (12 Bit conversion) | |
| Accuracy | +/- 0.2% | |
| Speed | 10mS using standard software | |
| Board Format | Extended double Eurocard (160 x 220mm) Lower connector for bus interface Upper connector for plant input and output |
|
| Board Pitch | 0.8 Inch centres | |
| Bus Interface | G64 | |
| Power Requirements | +5V +12V -12V |
at 200mA at 25mA at 25mA |
| Temperature | Operating preferred Operating Maximum Storage |
10 to 30 °C 0 to 70 °C -20 to 85 °C |
| Humidity | 10 to 90 RH, non condensing | |
Interface Modules
The DIN rail mounted termination modules provide a simple means of interfacing the rack mounted boards to the plant wiring. They also allow the ‘standard’ interface of the board to be ‘tailored’ to the specific plant requirements. The interface to the board is via 2 off 14 way ribbon cables, one for the four current output channels and one providing optional test input/output connections. The interface to the plant is via screw terminals capable of accommodating 2.5 mm2 wire and also via a test plug in parallel with the screw terminals.
The available interface modules are:
- Analogue O/P Interface Module, Common 24V (CT93048/01)
- Analogue O/P Interface Module, Common 24V (CT93048/02)
