CT92471C/02
3 in stock

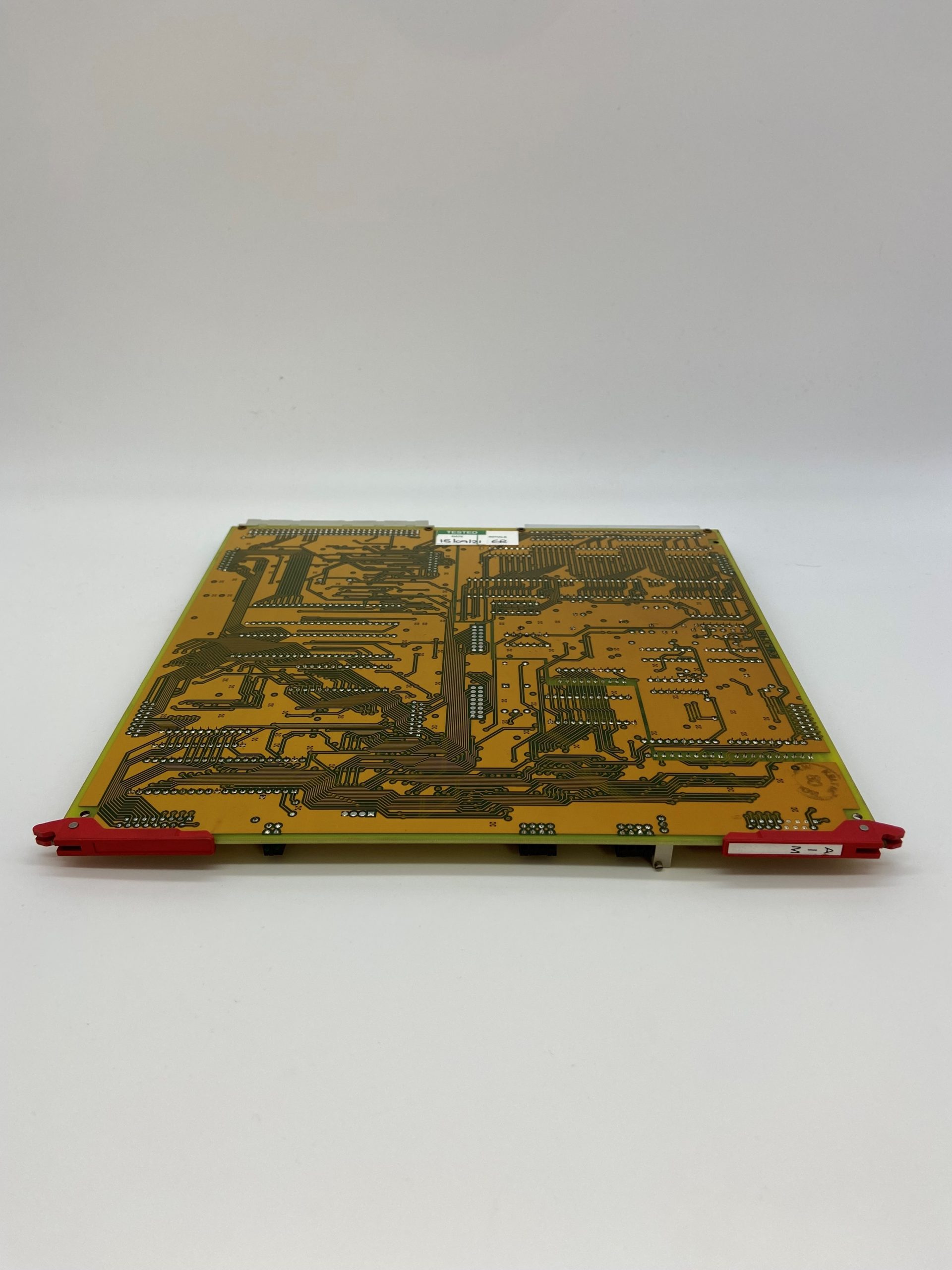

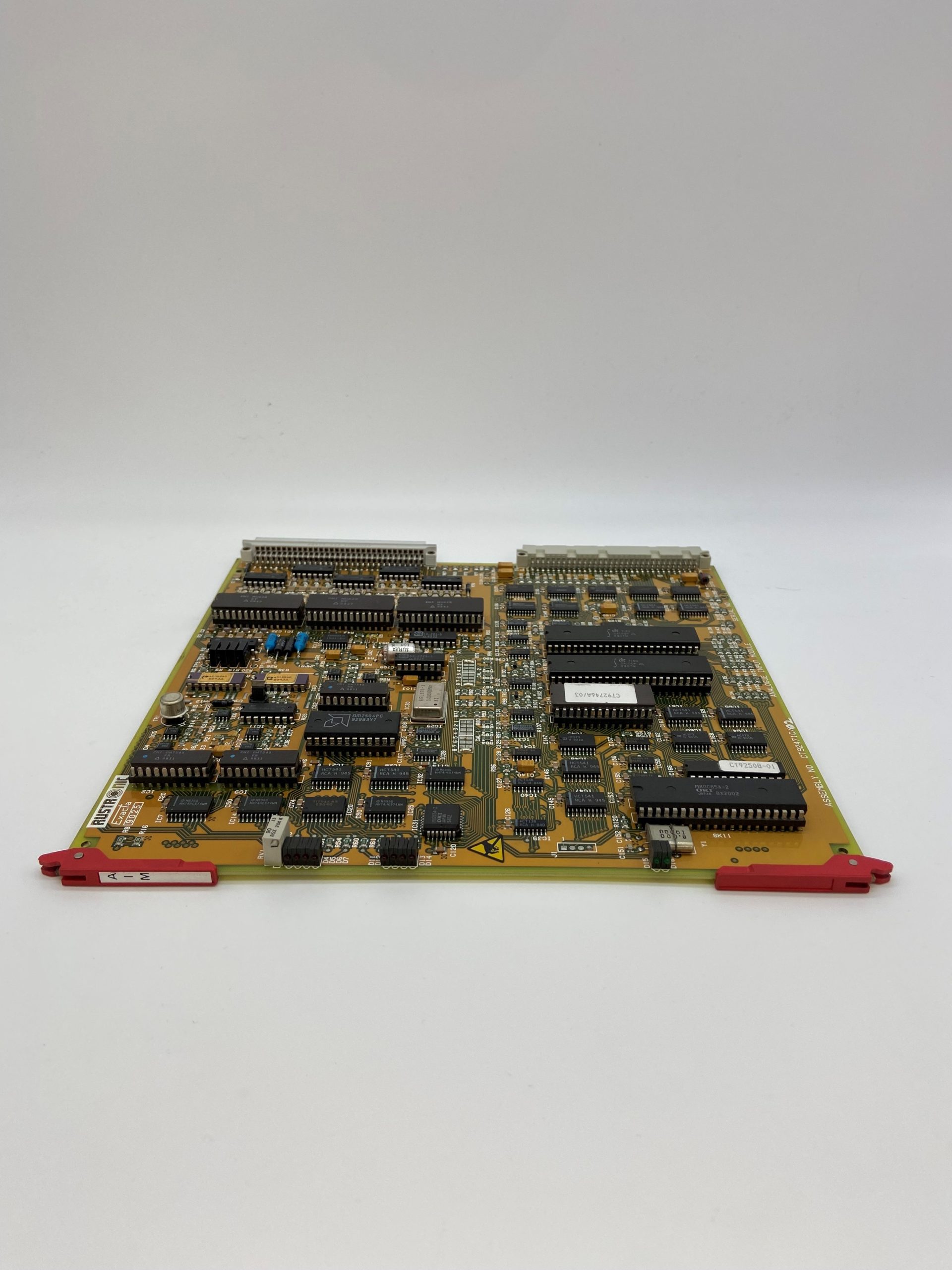

Analogue Input Module (AIM)
Description
Condition: Overhauled & Tested
Location: UK
Manufacturer: Siemens
Control System: Rustronic MkII
Warranty: 12 Months
Equivalent part Numbers: CT92471, CT92471A, CT92471B, CT92471D
Suitable for the engine range: SGT100, SGT200, SGT300, SGT400, LM1600, LM2500, LM5000, LM6000
The Analogue Input Module provides an interface between RP2 and sixteen analogue plant signals (e.g. Thermocouples, RTD’s, current loops). The board expects a ‘standard’ input range and termination modules are used to match plant signals to this requirement.
| Plant Inputs | 16 off | |
| Input Range | -21mV to + 63mV | |
| Maximum Common Mode Input Voltage (See Note 1) |
Recommended | +/- 5 Volts |
| Absolute | +/- 30 Volts | |
| Common Mode Rejection | Greater than 90dB all modes | |
| Resolution | 20uV (12 Bit conversion) | |
| Accuracy | +/- 0.05% | |
| RTD Current Loop | 261.1uA +/- 0.4uA | |
| Speed | 100mS with open circuit detection 10mS with no open circuit detection |
|
| Board Format | Extended double Eurocard (160 x 220mm) Lower connector for bus interface Upper connector for plant input and output |
|
| Board Pitch | 0.8 Inch centres | |
| Bus Interface | G64 | |
| Power Requirements | +5V +12V -12V |
at 550mA at 100mA at 50mA |
| Temperature | Operating preferred Operating Maximum Storage |
10 to 30 °C 0 to 70 °C -20 to 85 °C |
| Humidity | 10 to 90 RH, non condensing | |
| Filtering | Various Modes, see later | |
Interface Modules
The DIN rail mounted termination modules provide a simple means of interfacing the rack mounted boards to the plant wiring. They also allow the ‘standard’ interface of the board to be ‘tailored’ to the specific plant requirements. The interface to the board is via 4 off 14 way ribbon cables, one for each group of 4 channels. The interface to the plant is via screw terminals capable of accommodating 2.5 mm2 wire and also via a test plug in parallel with the screw terminals.
The available interface modules are:
- Thermocouple Interface Module (CT92783/01)
- Current (Unpowered) Input Interface Module (CT92783/02)
- 4 – 20mA Powered Interface Module (CT92965/01)
- Resistance Temperature Detector (RTD) Interface Module (CT92760/01)
- Ambient Compensation/Thermocouple Interface Module (CT92760/02)
- Starter Motor Interface Module (CT92832/01)
- Starter Motor Interface Module (CT92832/02)
- 10V Input Interface Module (CT94398/01)
- Switch Monitoring Interface Module (CT94570/01)
