CT92474A/14

Name: CT92474A/14 - European Power Systems
SKU: CT92474A/14
Availability: InStock

4 in stock

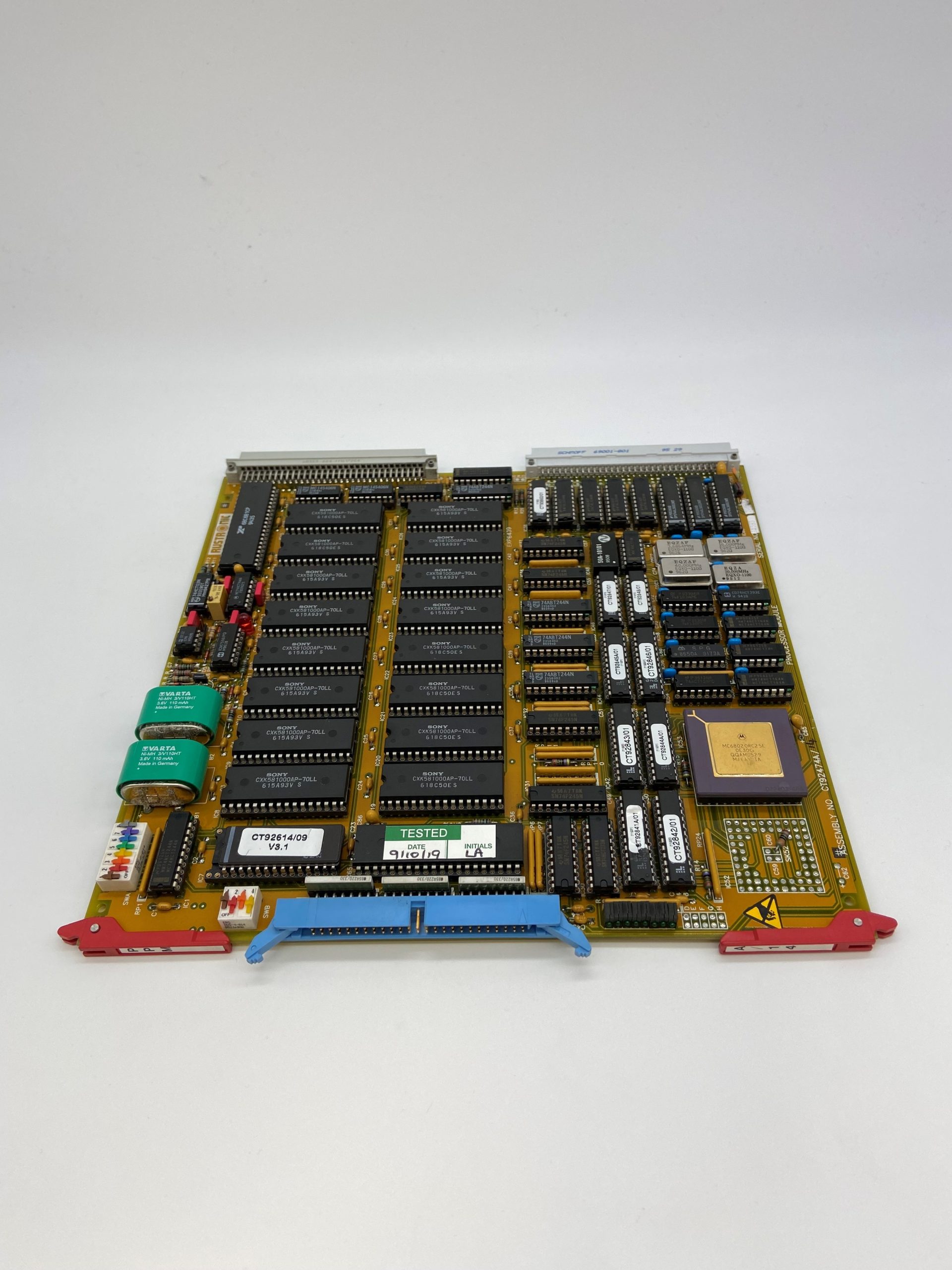

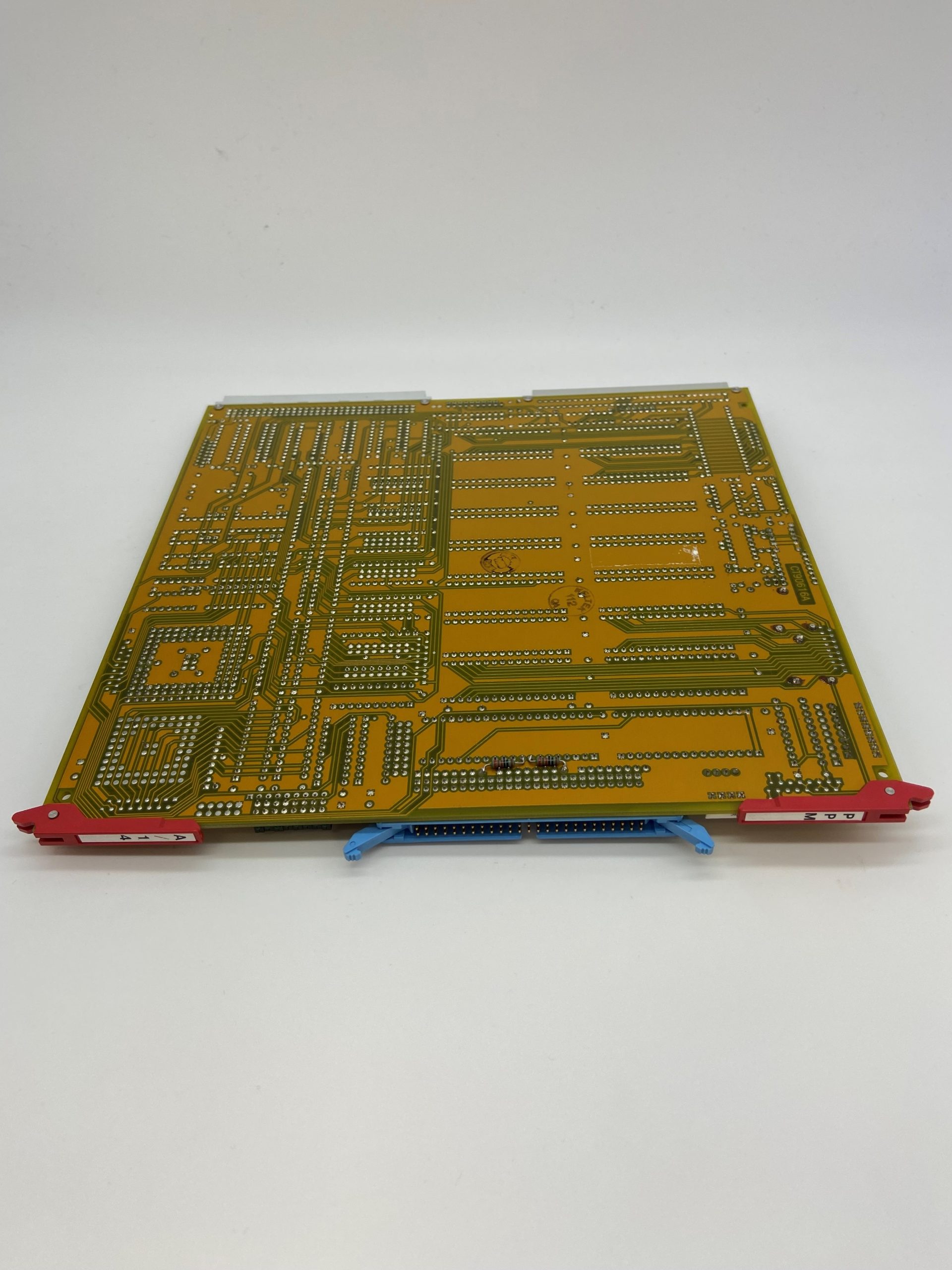

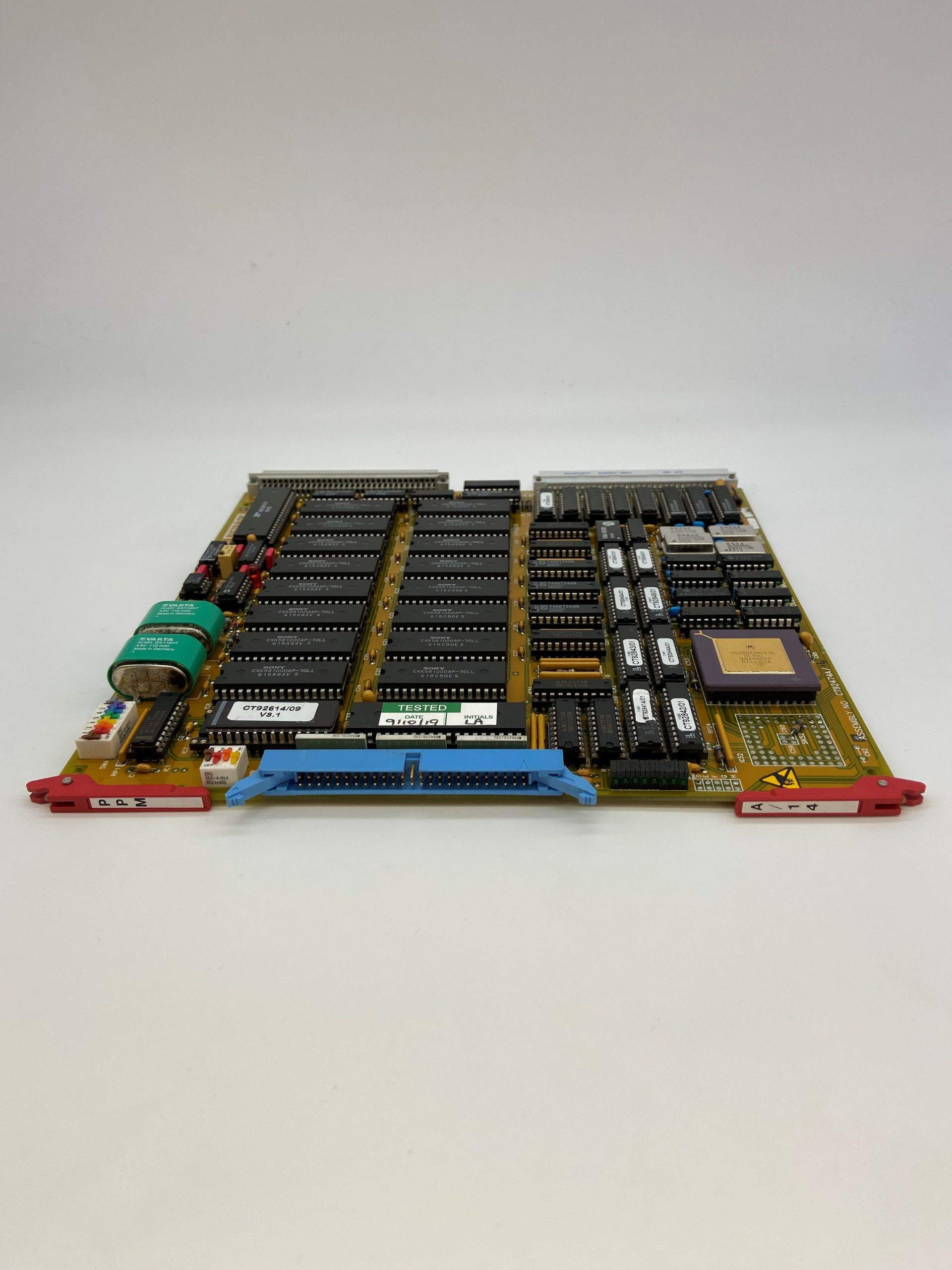

Programmable Processor Module (PPM) PPM1

Categories: Rustronic MkIISKU: CT92474A/14

Condition: Overhauled & Tested – Batteries changed at purchase point

Location: UK

Manufacturer: Siemens

Control System: Rustronic Mk2

Warranty: 12 Months

Equivalent part Numbers: Enquire – EPS can advise of alternatives

Suitable for the engine range: SGT100, SGT200, LM1600, LM2500, LM5000, LM6000

Executes one or more programmed processes. Provides integrated software tools for the development and maintenance of software.

Complete application programmable processor on a single circuit module.
Easy to use integrated incremental compiler, decompiler and full operator/system command interface.
Inbuilt support for applications software structuring, maintenance and security.
Non volatile memory.
Self diagnostic.
Connections for up to two full duplex serial channels and parallel channel to program/data store system.
Communicates with other Mk II system modules through Mk II bus system.

PPM modules each require one slot in the Mk II racking system. They may not be fitted into an expansion rack.
Processor clock speed 20 MHz, (25 MHz optional).
Memory size 2.0 MByte, static random access (battery backed), 64 KBytes read only memory.
Battery support time 6 months under preferred environmental conditions.
Serial I/O channels, RS232 DTE interface, recognises DSR and CTS, drives DTR and RTS hardware handshake lines.
Parallel I/O channel to program/data store, SCSI (initiator). Standard 50 way D.I.L. connector provided on front edge of module.
Board Format	Extended double Eurocard (160 x 220mm) Lower connector for bus interface Upper connector for plant input and output
Board Pitch	0.8 Inch centres
Bus Interface	G64
Power Requirements	+5V +12V -12V	at 1000mA at 200mA at 200mA
Temperature	Operating preferred Operating Maximum Storage	10 to 30 °C 0 to 70 °C -20 to 85 °C
Humidity	10 to 90 RH, non condensing
