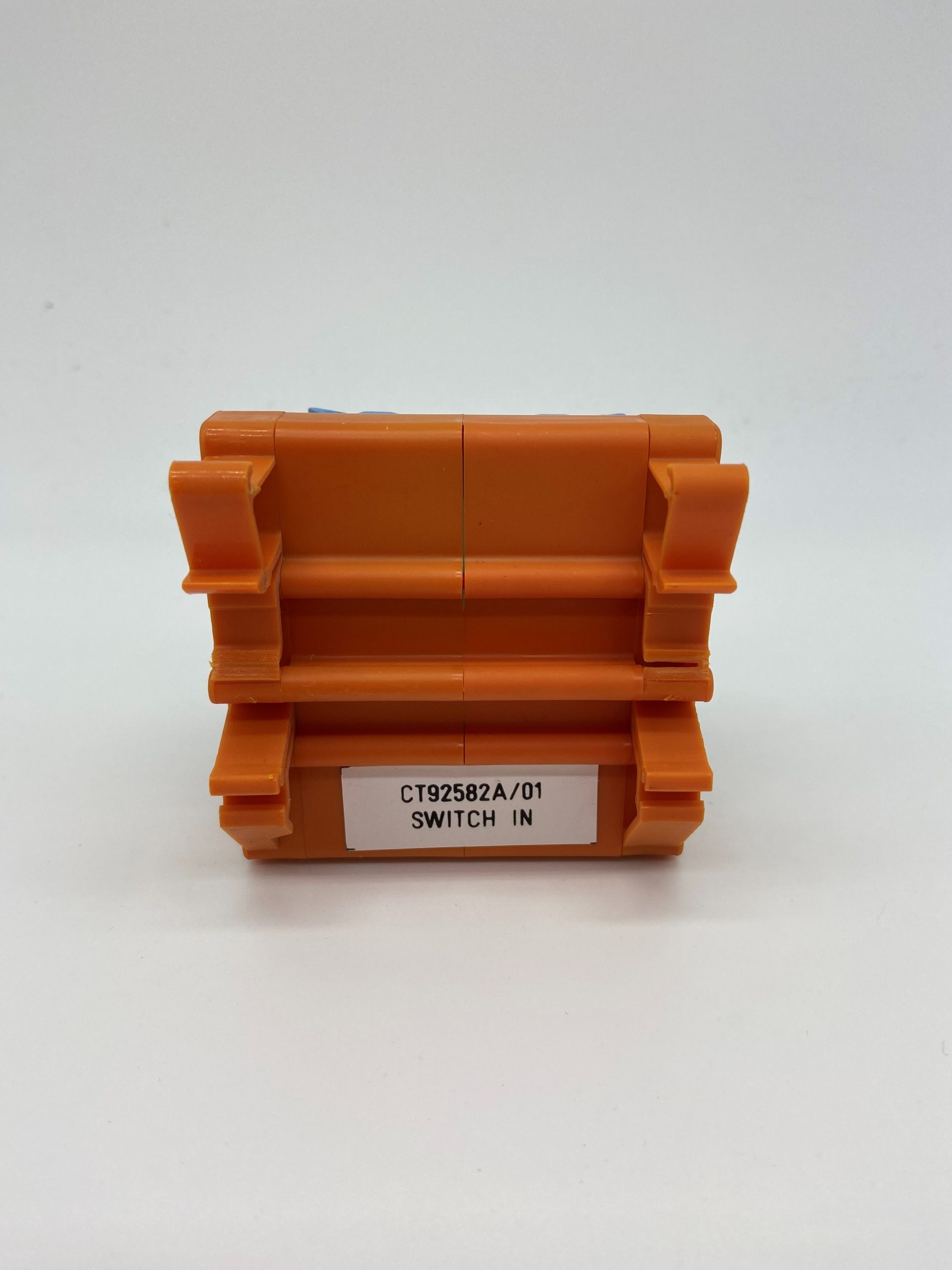

CT92582A/01

Description

Condition: Overhauled & Tested

Location: UK

Manufacturer: Siemens

Control System: Rustronic MkII

Warranty: 12 Months

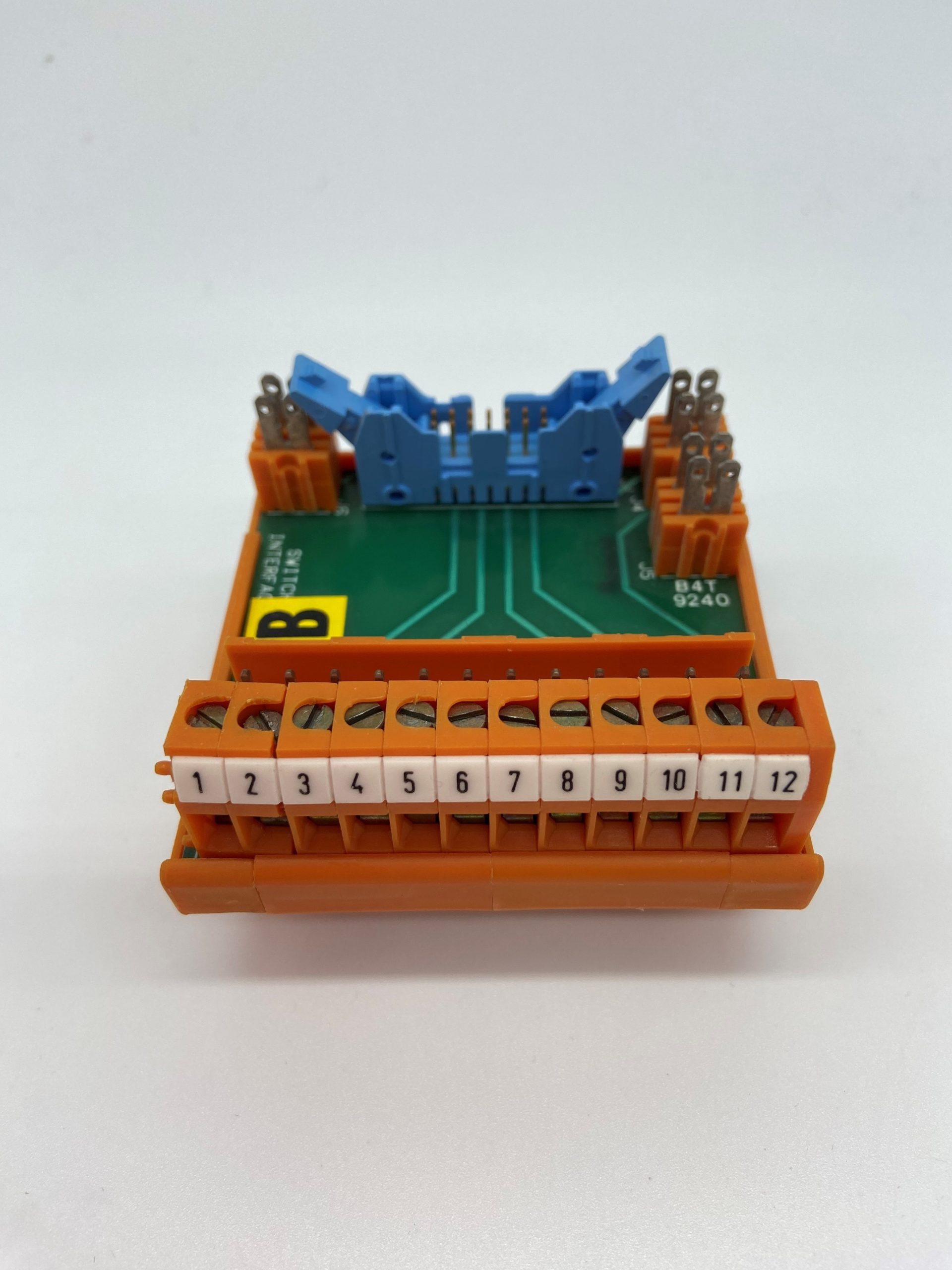

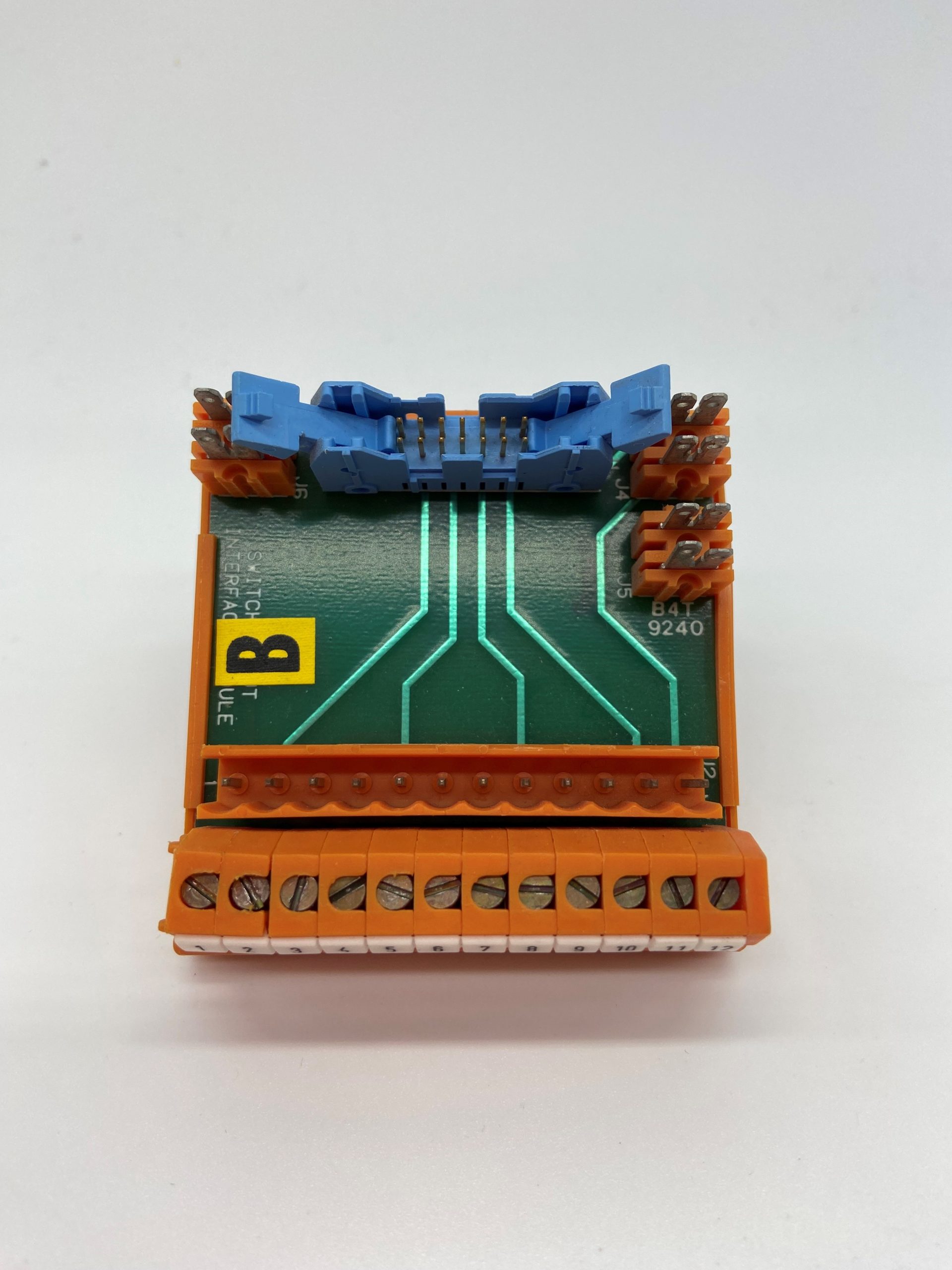

The DIN rail mounted termination modules provide a simple means of interfacing the rack mounted boards to the plant wiring. They also allow the ‘standard’ interface of the board to be ‘tailored’ to the specific plant requirements. The interface to the board is via 4 off 14 way ribbon cables, one for each group of 4 channels. The interface to the plant is via screw terminals capable of accommodating 2.5 mm² wire and also via a test plug in parallel with the screw terminals.
The available interface modules are:-

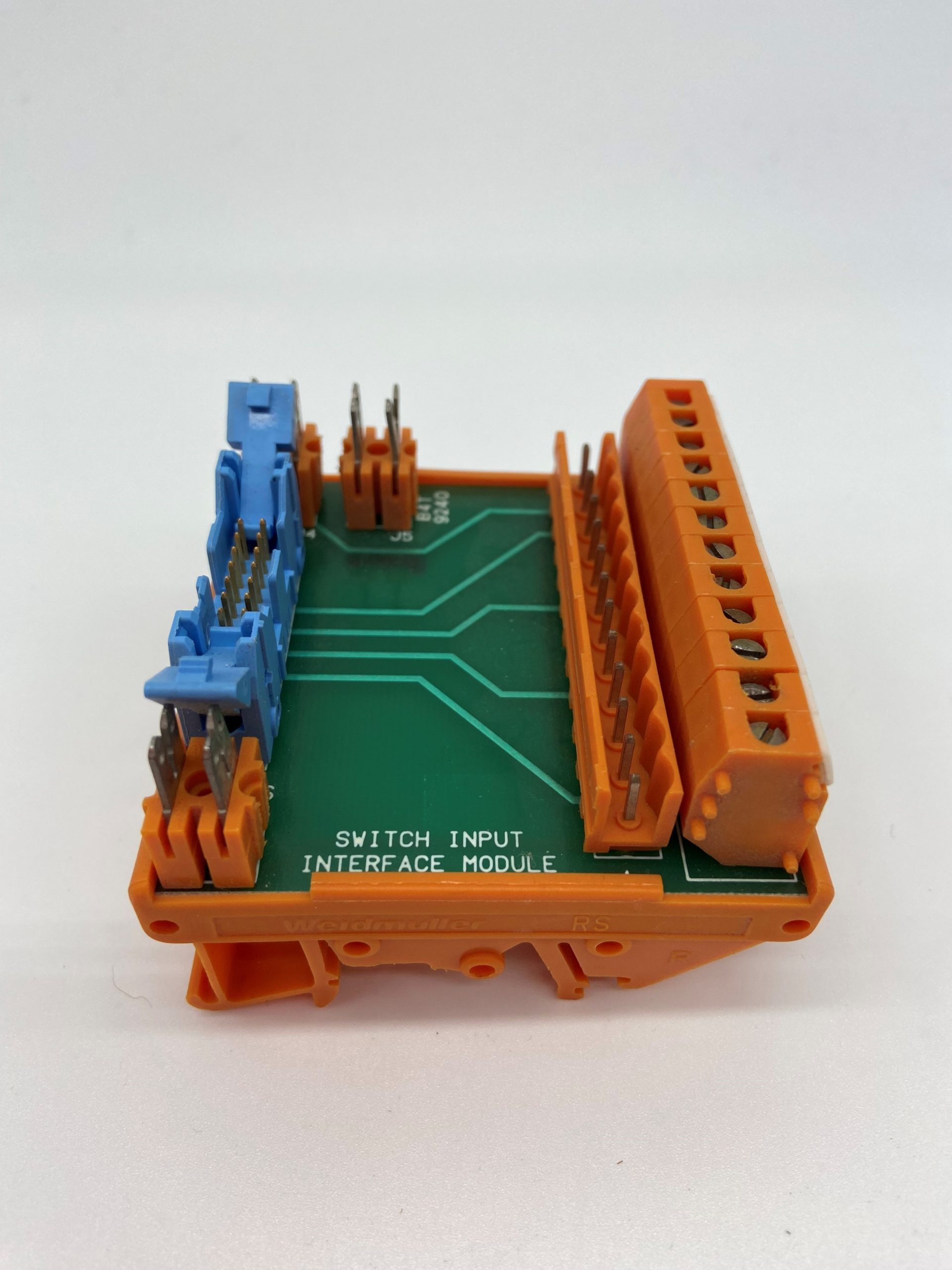

• Switch Input Interface Module (CT92582A/01)
• Double Switch Input Interface Module (CT94134/01)

Sometimes referred to as a soapdish
