CT93582/05

Description

Condition: New

Location: UK

Manufacturer: Siemens

Control System: Rustronic Mk2

Warranty: 12 Months

Equivalent part Numbers: CT93582/01,  CT93582/02, CT93582/03, CT93582/04

Suitable for the engine range: SGT100, SGT200, SGT300, SGT400, LM1600, LM2500, LM5000, LM6000

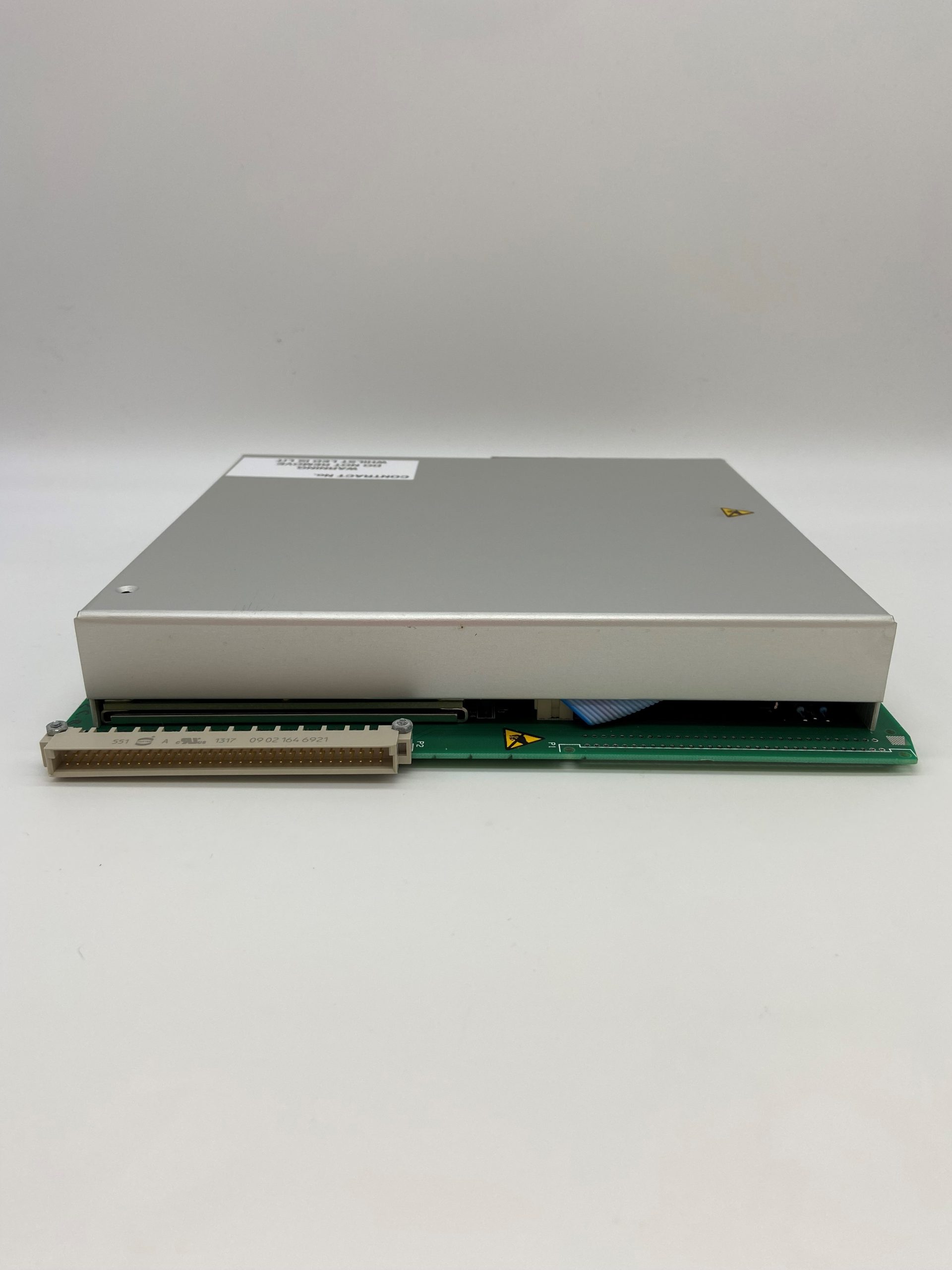

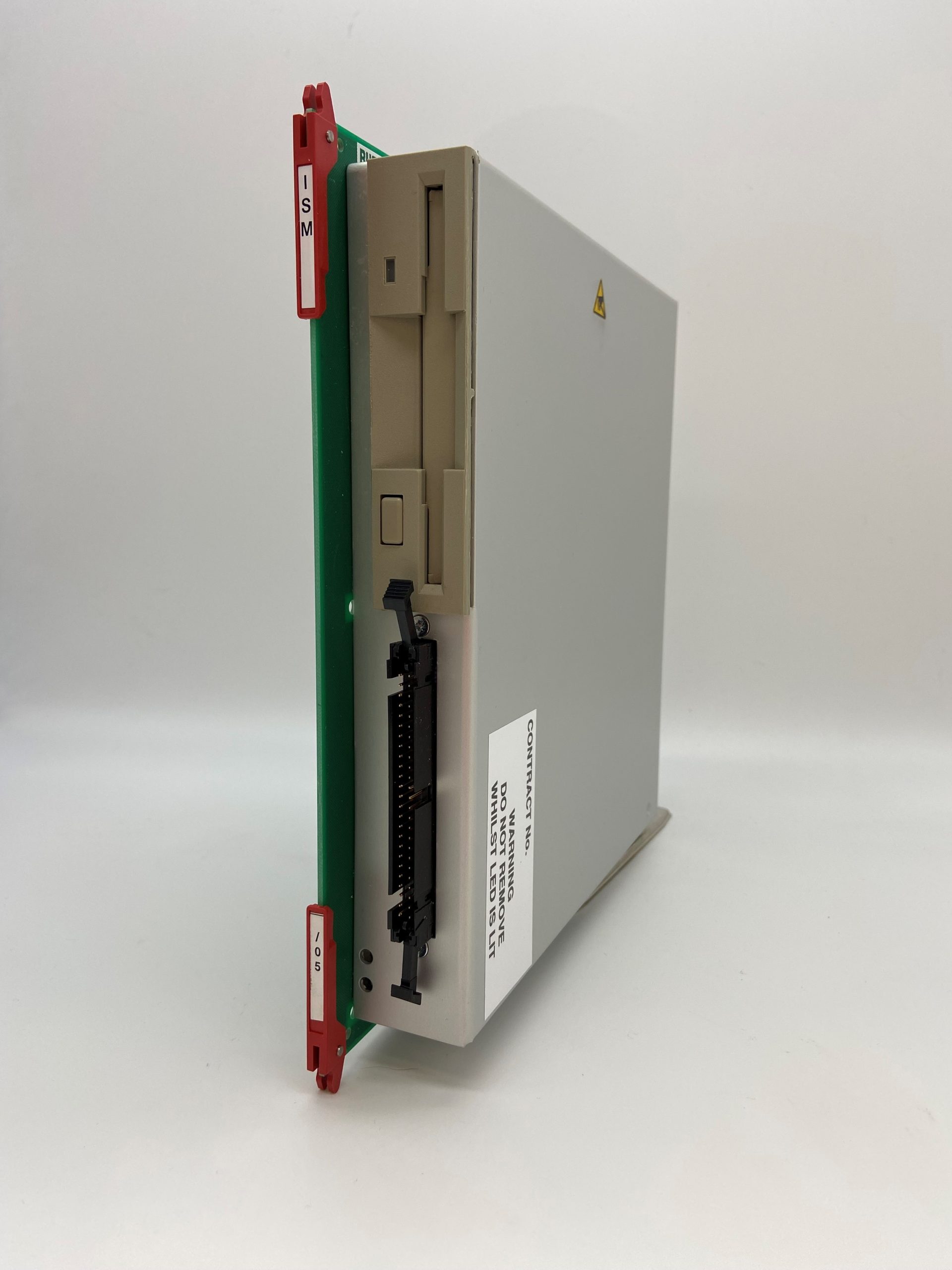

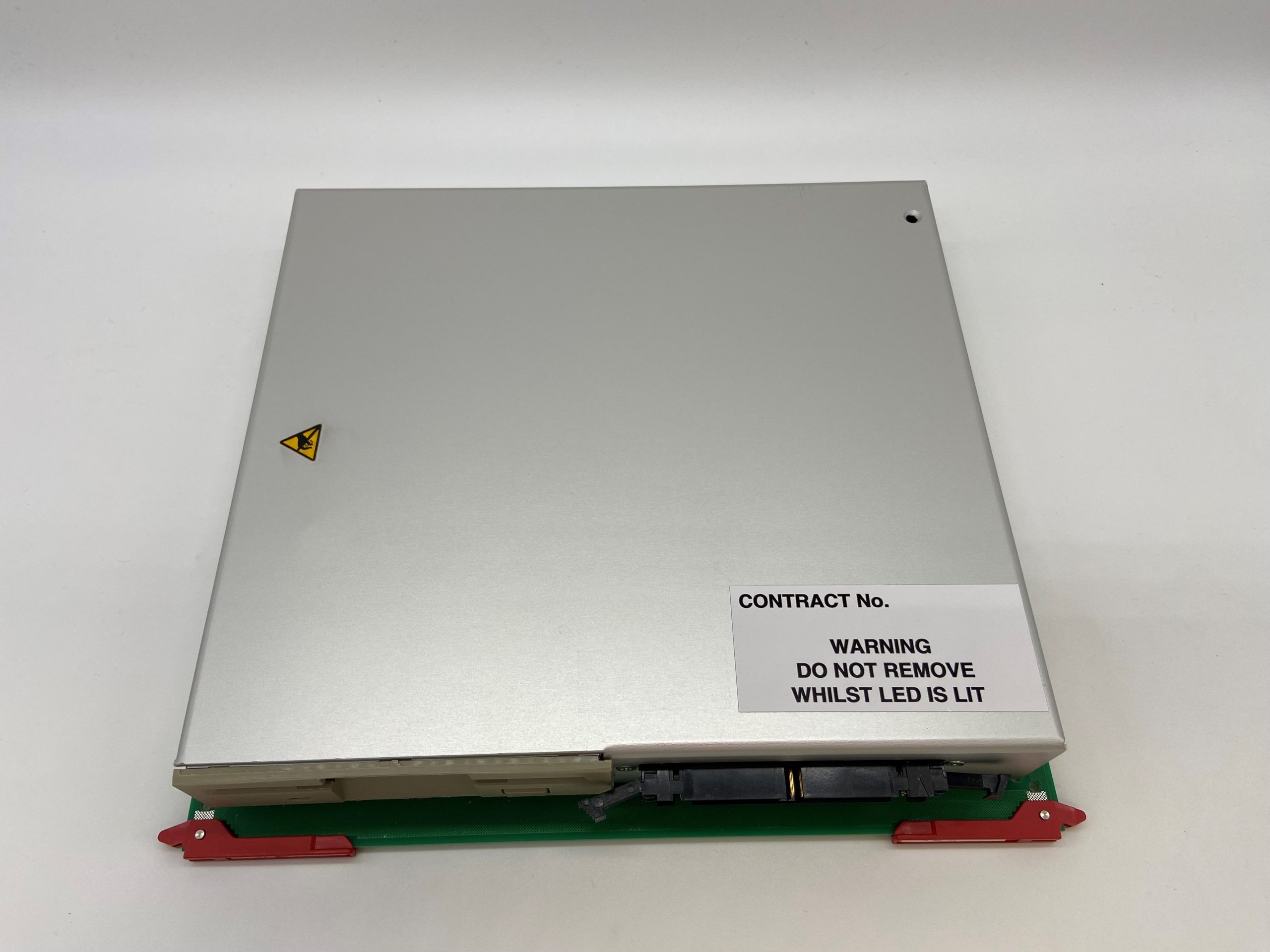

Genuine new Integrated Storage Module (ISM). The ISM provides mass storage for program and data. It has a 1.44MB 3.5 inch floppy drive and a hard disk drive in a double width (8HP) module.

• 1.44MB 3.5 inch floppy drive (MS70).
• 80MB formatted capacity hard disk (MS60).
• Activity LEDs for floppy and hard disk drives.
• Integral SCSI interface for direct connection to PPM.
• Data transfer rate typically 40KB per second.
• On older MkII systems, the ISM is mounted on the left side of the Mk2 rack.
• On new MkII systems, the ISM is mounted on the right side of the Mk2 rack.

Board Format: Extended double Eurocard (160 x 220mm)
Lower rear connector for power
Front connector for SCSI bus

Board Pitch: 1.6 Inch centres, 8HP (occupies 2 slots)

Bus Interface: 50 way SCSI / G64 (power only)

Power Requirements: +5V at 500mA
+12V at 300mA
Temperature: Operating preferred 10 to 30 °C
Operating Maximum 5 to 55 °C
Storage- 20 to 60 °C

Thermal Gradient: Not to exceed 20 °C per hour

Humidity: 10 to 80 RH, non condensing
